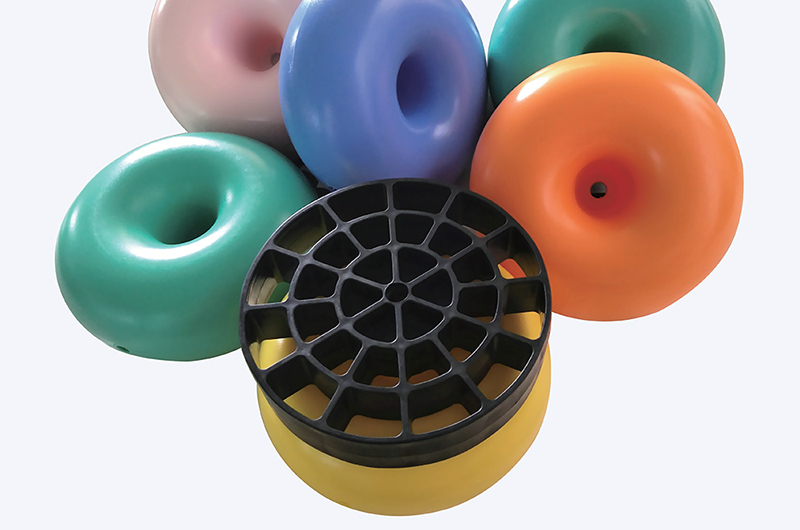

Shockproof ball, also known as shock pad, fitted with M8 four-jaw nut (optional without M8 nut)
Material: Low-density Polyethylene (LDPE)
Size: 150*73mm
Anti-shock cushion ball + increasing pad is an air shock absorber, similar to the spring shock absorber principle.
It has the advantages of high strength, good toughness, strong rigidity, heat resistance and cold resistance.
Shockproof ball through the pressure from the side hole to discharge the suction air to achieve the purpose of shock absorption,
it can be easily installed at the bottom of the tray, with small weight, small volume, to provide large shock absorption, buffer function.
Not only does it avoid the need to purchase air shock absorber in the process of transportation, but also its existence can
provide a safe and practical shock absorber for the transportation of packed wooden cases.
The shockproof ball has 5 different colors: orange/blue/yellow/green/brown,
and the shockproof ball of different colors represents different load bearing.
Heightening pads are black only and can be used with shock-proof balls.
(if the bottom height of the wooden box is in the range of forklift trucks, it is not necessary to use heightening pads.)
The anti-vibration ball can be directly installed at the bottom of the wooden box,
but it is necessary to increase the height of the pallet or wooden box by 30mm with wooden boards or piers,
and the height must be within the working range of the forklift truck.
(Note: manual forklift height does not exceed 95mm.)

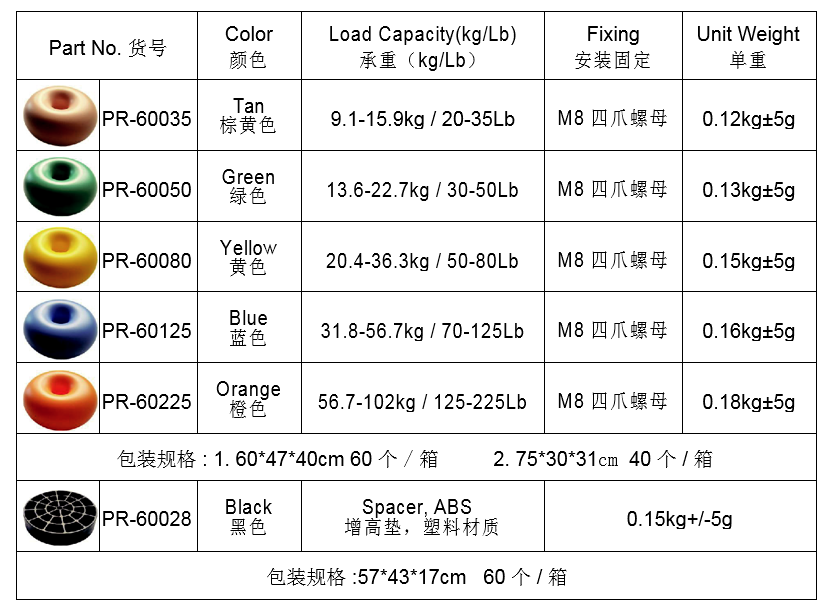

See the table below for details

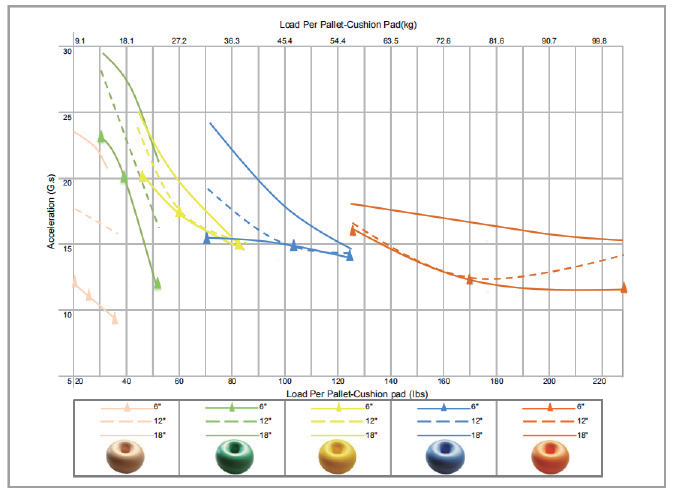

Product bearing force analysis curve
Anti-vibration ball series product performance
? Wide range of application, reusable, recycling value
? High and low temperature resistance (-40 ℃ - +54 ℃)
? Strong resistance to chemical corrosion
? It can glide for about 3,000 steps (914 meters) on a concrete floor
Scope of application
It is widely used in the packaging and transportation of large machines/machinery, precision instruments/meters,
medical equipment, solar/photovoltaic power generation equipment, video equipment, fragile items, valuable exhibits,
high-end furniture, artworks, high-value packaged items, etc.
This product, you can
? An anti-vibration system can be quickly installed on existing board boxes, and pallets do not need to be redesigned
? Reduce packaging design and assembly time
? Reduce material and application costs, eliminating the need for wooden or foam shock-resistant materials
? There is no need to buy an expensive air-damping car while in transit
? Provide protection for the most needed instruments in the event that normal loading and unloading is not possible
? Minimize the possibility of damage during the transportation of valuable items
? Reduce after-sales service costs and maintenance costs
? Height does not hinder forklift operation
